Περιγραφή

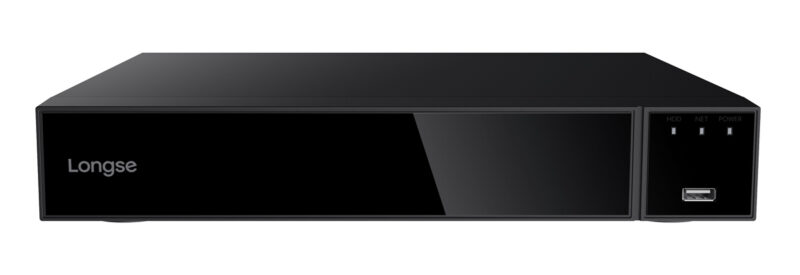

LONGSE XVR υβριδικό καταγραφικό XVR5016C1N, 5MP H.265/H.264, 16 καναλιών

Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog) της Longse, με υποστήριξη έως 16 αναλογικών καναλιών ή 16 δικτυακών καναλιών. Υποστηρίζει ανάλυση καταγραφής έως 5MP.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια.

Σημεία ενδιαφέροντος προϊόντος
-υποστήριξη έως 16 αναλογικών καναλιών
-υποστήριξη έως 16 δικτυακών καναλιών
-υποστηρίζει ανάλυση έως 5MP
-H.265/H.264 video compression
-υποστήριξη απομακρυσμένου ελέγχου μέσω smartphone
-υποστήριξη σκληρού δίσκου με χωρητικότητα έως 8TB
-ελληνικό μενού

Συμβατές εφαρμογές:

Android
https://play.google.com/store/apps/details?id=com.gzch.lsplat.bitdog&hl=el

IOS
https://apps.apple.com/us/app/bitvision/id1419463554

PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10

WEB Browser
www.bitvision.app

Τεχνικά χαρακτηριστικά
System
-Main Processor: MC6650
-Operating System: Embedded LINUX

Video
-Input:
Analog: 16x (TVI/AHD: 5M @12fps, AHD/TVI/CVI: 4M @15fps, AHD/TVI/CVI: 1080P/720P, Analog: 960H)
Analog + Network: 2x Analog (5MP) + 14x network (MAX 8MP), 4x Analog (5MP) + 12x network (MAX 8MP), 6x Analog (5MP) + 10x network (MAX 8MP), 8x Analog (5MP) + 8x network (MAX 8MP), 10x Analog (5MP) + 6x network (MAX 8MP), 12x Analog(5MP) + 4x network (MAX 8MP), 14x Analog (5MP) + 2x network (MAX 8MP)
Network: 16x 8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth </=80M)
-Input: 16CH BNC
-Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
-Output: 1 HD, 1 VGA

Audio
-Input: 1 Channel RCA, support AOC
-Output: 1 Channel RCA

Alarm
-Motion Detection: 16 Channel
-Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
-Email Alarm: Send Image to The Designated E-mail

AI Function
-Human Detection: Yes

PTZ
-Protocol: Coaxial Control

Display
-VGA Resolution: 1920 x 1080P, 1280 x 1024, 1280 x 720,1024 x 768
-HD Output: Resolution: 1920 x 1080P, 1280 x 1024, 1280 x 720, 1024 x 768
-Display Split: 1/4/8/9/16
-Privacy Masking: 3 Rectangular Zones (Each camera)
-OSD: Camera title, Time, Video loss, Motion detection, Recording

Recording
-Video Compression: H.265/H.265+/H.264/H.264+
-Audio Compression: G.711U/G.711A
-Resolution: 5MP_Lite (1280×1952), 4MP_Lite (1280×1440), 1080N (960×1080), 720P (1280×720), 960H (960×480)
-Video Quality: Lowest/Low/Ordinary/Good/Better/Best
-Record Rate
Analog: PAL: 5MP_Lite (1280×1952 16x6fps), 4MP_Lite (1280×1440 16x8fps), 1080N (960×1080 16x15fps), 720P (1280×720 16x15fps), 960H (960×480 16x25fps)
NTSC: 5MP_Lite (1280×1952 16x6fps), 4MP_Lite (1280×1440 16x8fps), 1080N (960×1080 16x15fps), 720P (1280×720 16x15fps), 960H (960×480 16x30fps)
Pure IP(H.265):
PAL: 8MP @9x25fps, 5MP @12x25fps, 4MP @16x25fps, 3MP @16x25fps, 1080P @16x25fps, 960P @16x25fps, 720P @16x25fps, D1 @16x25fps
NTSC: 8MP @9x30fp, 5MP @12x30fps, 4MP @16x30fps, 3MP @16x30fps, 1080P @16x30fps, 960P @16x30fps, 720P @16x30fps, D1 @16x30fps
-Record Mode: ManualTimerMotion DetectionIntelligent

Playback & Backup
-Decode Capability: 4x 1080P @30fps
-Sync Playback:
Pure Analog: 16CH 5M_LITE @6fps, 15CH 4M_LITE @8fps, 16CH 1080N @15fps, 16CH 720P @15fps, 16CH 960H @30fps
Mix Mode: 1CH 4K @30fps, 1CH 5M @30fps, 2CH 4M @30fps, 2CH 3M @30fps, 4CH 1080P @30fps, 4CH 720P @30fps, 4CH 5M_LITE @6fps, 4CH 4M_LITE @8fps, 4CH 1080N @15fps, 4CH 720P @15fps, 4CH 960H @30fps
Pure IPC: 1CH 4K @30fps, 1CH 5M @30fps, 2CH 4M @30fps, 2CH 3M @30fps, 4CH 1080P @30fps, 4CH 720P @30fps
-Remote Playback: 4 Channel / 1 Channel
-Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Human Detection, Tag
-Playback Functions: Play, Pause, Stop, Fast play, Slow Play, Rewind, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
-Smartphone Playback: 4 Channel
-Backup Mode: USB Device (with format FAT 32)/Network/FTP

Network
-Interface: 1 RJ-45 10M/100M self-adaptive Ethernet Interface
-Network Functions: TCP/IP, HTTP, HTTPS, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, NTP, UPnP
-DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
-Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
-CMS Software: Support Windows 7/Windows 8/Windows 10/Windows 11/MAC OS
-Extra Stream: CIF/D1 (1-30fps)
-Smartphone: iPhone, Android

Hard Disk Driver
-Interface Type: 1 SATA Interface
-Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

General
-UTC Control: Yes
-USB Interface: 2 USB 2.0 Interfaces
-Power consumption: DC 12V/2A </= 7W (without HDD)
-Working Environment -10 °C ~ 55 °C / 10 ~ 90%
-Dimension (WxDxH): 260 x 23 x 43mm
-Weight: 0.86Kg (Without HDD)

Περιεχόμενα συσκευασίας
-XVR καταγραφικό
-Ενσύρματο ποντίκι
-Τροφοδοτικό
-Βίδες
-Εγχειρίδιο χρήσης
